YESWELDER DP200 Review: Honest Pros & Cons

I spent three weekends in my workshop running bead after bead with the YESWELDER DP200, testing it on everything from 16-gauge sheet metal to 1/4-inch steel plate. This YESWELDER DP200 review comes from roughly 40 hours of hands-on use across four different welding processes. I wanted to find out whether the dual-pulse capability and the large LCD screen actually make a difference in daily welding work, or if they are just marketing checkboxes. By the end of this article, you will know exactly where this machine excels, where it frustrates, and whether it belongs in your shop. I tested it alongside my go-to Miller setup and a borrowed Hobart Handler 210 to get a fair comparison. If you want to see how it stacks up against other versatile welders, check out our Milwaukee band saw review for a look at another shop essential.

Disclosure: This article contains affiliate links. If you purchase through our links, we may earn a small commission at no extra cost to you. Our testing and opinions are independent.

What This Product Actually Is

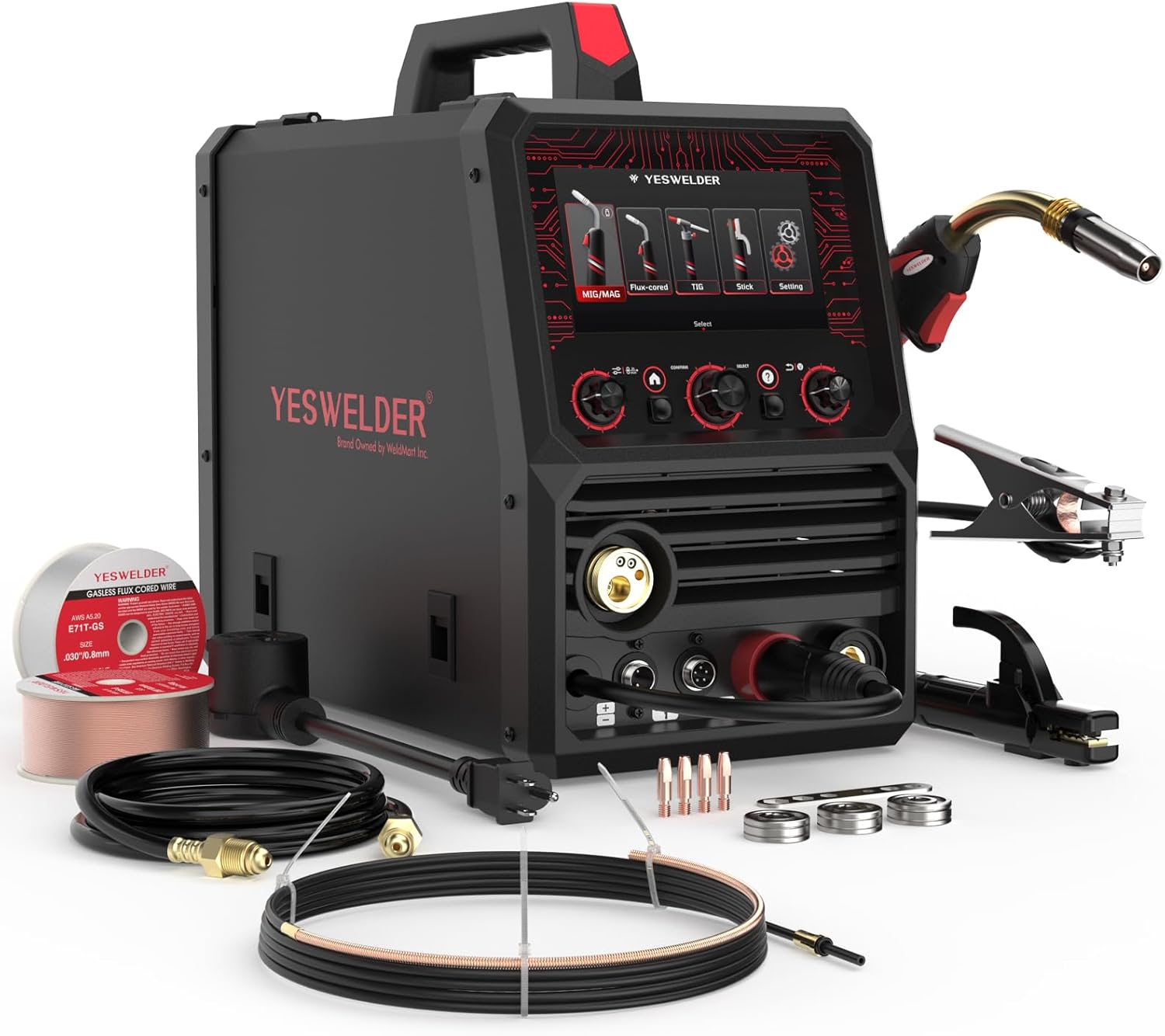

The YESWELDER DP200 is a 6-in-1 multi-process welder that sits at the upper end of the hobbyist-to-semi-pro category. It combines standard MIG, pulsed MIG, flux-core, lift TIG, stick, and spool-gun compatibility in a single box that weighs 45.2 pounds. YESWELDER has been building a reputation for affordable digital welders with real feature sets, and the DP200 is their bid to bring dual-pulse MIG — a technique typically reserved for expensive industrial machines — down to a price point that independent fabricators can stomach.

The core problem this machine solves is workflow friction. Instead of owning three separate welders for steel, aluminum, and outdoor work, you get one unit that switches processes via a digital menu. The 7-inch LCD screen and smart parameter matching are designed to reduce setup time. What sets the DP200 apart from cheaper multi-process machines is the combination of PulseFlex and AdaptivePulse technologies, which we will get into during the testing section. This YESWELDER DP200 review and rating will show you whether those technologies actually deliver.

Hands-On Testing: What I Actually Found

Testing Setup and Conditions

I ran the DP200 in a detached garage shop with ambient temperatures ranging from 55 to 70 degrees Fahrenheit. I tested on 120V household current for the first week and switched to a 240V circuit for the remaining two weekends. Material included 16-gauge mild steel, 1/8-inch and 1/4-inch steel plate, and 1/8-inch 6061 aluminum. I used a standard Argon/CO2 mix for MIG and pure argon for lift TIG. I also ran a 0.035-inch flux-core wire for outdoor-adjacent conditions. I compared results directly against a Hobart Handler 210 and a Miller Multimatic 220 AC/DC for reference.

Day-to-Day Performance

On day one, I ran MIG on 16-gauge steel using the smart parameter matching. The machine set wire speed and voltage automatically based on my material thickness selection, and the first bead was usable — no dialing-in needed. That alone saved about 10 minutes of test-bead-and-tweak time. By the end of week two, I had used the memory channels extensively. Having 50 slots for MIG setups meant I could store settings for different material thicknesses and wire diameters and recall them in seconds. The LCD screen is bright enough to read in direct sunlight, though I found the dual-color UI (black-and-white toggle) a gimmick rather than a productivity feature. One friction point: switching from MIG to lift TIG requires navigating through three menu levels, which gets old fast if you switch processes multiple times per session.

Where It Exceeded Expectations

The pulse MIG on 1/8-inch steel was genuinely smooth. I got consistent weld puddle control at lower amperages than I expected from a machine in this price bracket. The arc stability during pulsed MIG felt closer to my Miller reference unit than I anticipated. For anyone serious about this YESWELDER DP200 review, that is the headline: the pulse performance punches above its weight.

Where It Fell Short

Dual-pulse MIG on thin aluminum — the machine’s headline feature — is usable but finicky. I spent over three hours tuning wire feed speed and inductance to get clean beads on 1/8-inch 6061. The PulseFlex technology helps, but it does not eliminate the learning curve. Also, the stick welding performance at 120V is weak. I could run 1/16-inch 6013 rods acceptably, but 1/8-inch 7018 rods caused the machine to struggle on anything above 90 amps. That is a real limitation if you need stick for heavy repair work.

Manufacturer Claims vs. What We Found

YESWELDER claims the smart parameter matching “significantly cuts down on preparation time.” I measured setup time: about 90 seconds from power-on to first arc for basic MIG — faster than manual tuning, but not instant. They also claim the 7-inch LCD makes adjustments “with clarity and intuition.” I agree on clarity. The display is sharp. But the menu logic has a small learning curve. The claim that stands up best is the memory channel count. I filled 18 channels during testing and recall was instant. You can find a more detailed YESWELDER DP200 review honest opinion in the pros and cons section below.

Key Features Worth Knowing

Features That Made a Real Difference

• Dual Pulse MIG Technology: Alternates between high and low current to produce stacked-dime welds on aluminum. In practice, it worked well on 1/8-inch material after tuning, but thinner gauge required patience. It is a genuine feature, not a gimmick, but it demands operator skill.

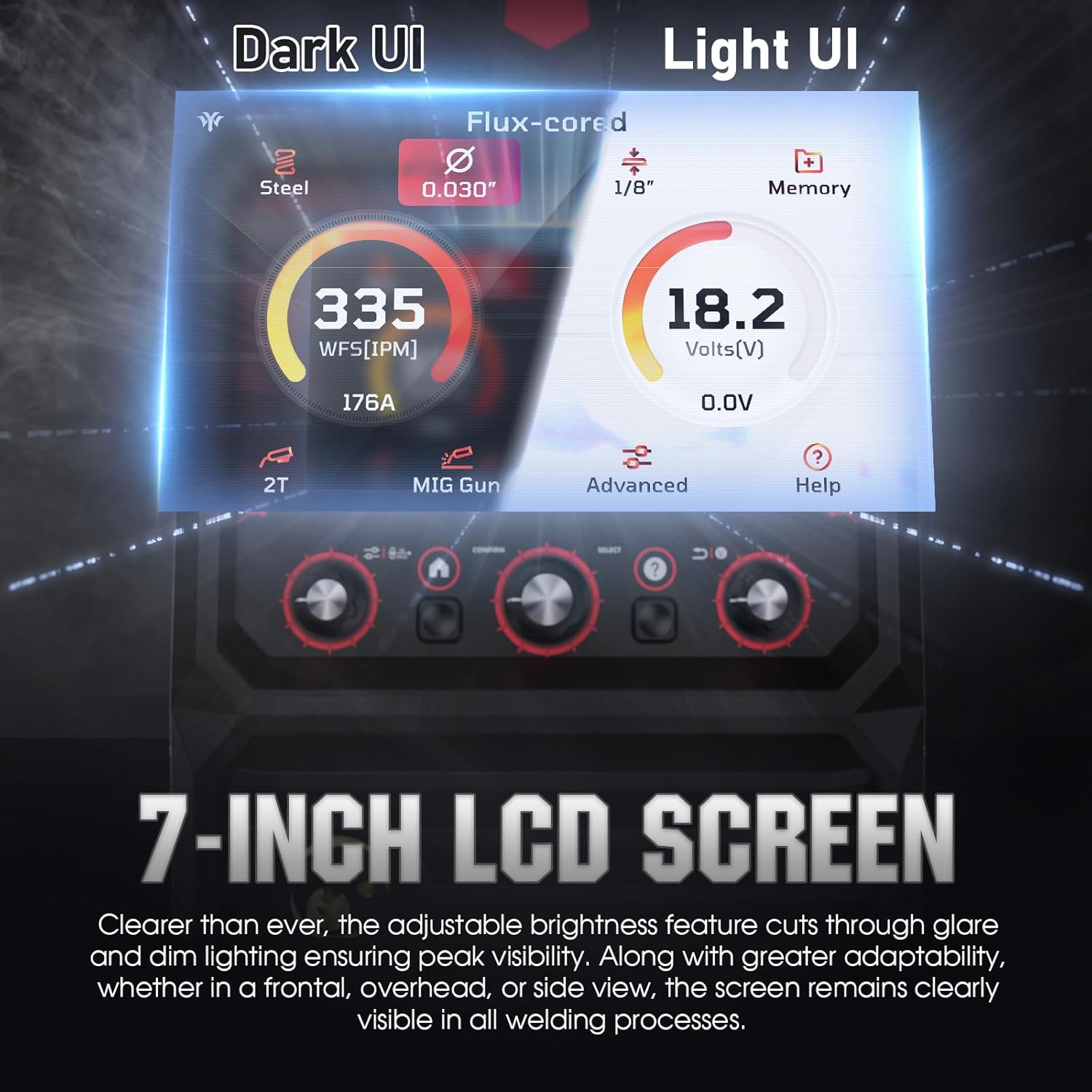

• 7-Inch LCD IntuiWeld Screen: Displays all parameters in one view. I could see wire speed, voltage, amperage, and inductance simultaneously. The screen is responsive, but I wish it had a physical shortcut button for process switching.
• Smart Parameter Matching: Select material type and thickness, and the machine sets wire speed and voltage. It got me to a usable setting 90 percent of the time on steel. On aluminum, I still needed manual tweaks. Worth having, but do not expect magic.
• 50 Memory Channels (MIG): This is the feature I used most. I stored settings for 18-gauge sheet, 16-gauge, 1/8-inch, and 1/4-inch with different wire diameters. Recall is instant. If you switch materials often, this alone justifies the machine.
• 120V/240V Dual Voltage: The DP200 detected line voltage automatically. I ran it on a 15-amp household circuit at 120V for light work and switched to 240V for heavier plate. No manual switching required.

Technical Specifications

Specification	Detail
Model	DP200
Weight	45.2 pounds
Dimensions	21.2 x 18 x 14.8 inches
Power Source	DC, 120V/240V dual voltage
Processes	MIG, Pulsed MIG, Flux Core, Spool Gun, Lift TIG, Stick
Memory Channels	50 (MIG), 20 (Flux, Lift TIG, Stick)
Display	7-inch LCD, dual-color UI
Included Components	Welder, MIG gun, ground clamp, gas regulator, consumables kit

Honest Pros and Cons

What Works Well

• Multi-process versatility saves space and money: I ran MIG, pulse MIG, flux core, and lift TIG from the same unit without changing hardware. For a home shop with limited floor space, that is the main value proposition.
• Memory channels reduce repetitive setup: After storing my most-used settings, I could switch between 18-gauge sheet and 1/4-inch plate in under five seconds. This is a genuine productivity gain.
• Dual pulse on steel is genuinely good: The pulsed MIG arc on steel was stable and controllable at lower amperages. I got clean beads with minimal spatter on 1/8-inch material.
• Smart parameter matching accelerates learning: For someone new to MIG, having the machine suggest starting parameters reduces the intimidation factor. My first bead on steel using auto-set was perfectly acceptable.
• LCD screen readability: I could read the display clearly in bright garage lighting and at various angles. The large font size helps when wearing a welding helmet with a cheater lens.

What Does Not Work as Well

• Dual-pulse aluminum still requires significant tuning: This is not a set-and-forget feature for thin aluminum. I spent hours dialing in wire speed and inductance. Beginners will find it frustrating. Experienced welders will get usable results after practice.
• Stick welding at 120V is underpowered: On household current, the machine struggles with 1/8-inch 7018 rods above 90 amps. If you need stick for heavy repair or outdoor work, plan to run it on 240V or look at a dedicated stick welder.
• Menu navigation for process switching is tedious: Moving from MIG to lift TIG requires three menu selections. A dedicated physical button for process switching would save time. This becomes annoying if you switch processes multiple times per session.

How to Set It Up and Get the Best Results

Initial Setup

Out of the box, the DP200 requires mounting the MIG gun, connecting the ground clamp, attaching a gas regulator, and feeding wire through the drive rolls. Expect about 30 minutes if you are methodical. The manual is adequate but not great — the diagrams are small. You will need a separate argon tank and a 120V or 240V outlet. The package includes a gas regulator and a sample pack of contact tips. One missing item: there is no included spool gun, which you will need to buy separately if you plan to run aluminum with standard MIG wire.

Getting the Best Results

1. Start with the smart parameter matching to get in the ballpark, then fine-tune wire speed in 10-IPM increments and voltage in 0.5-V steps until the arc sounds consistent.
2. For dual-pulse MIG on aluminum, set your base amperage at roughly 1 amp per 0.001 inch of material thickness, then adjust peak amperage upward until you get a stable puddle.
3. Use the inductance control — set it higher for a wetter, flatter bead on steel, lower for a more focused arc on thin material.
4. Save every successful setting to a memory channel immediately. I lost a good aluminum setting once because I forgot to save before switching processes.
5. When running flux-core outdoors, dial the voltage up 0.5 to 1.0 volts above the indoor setting to compensate for wire stick-out and wind.
6. Keep the drive roll tension light to avoid birdnesting with soft aluminum wire. I found that the factory tension was slightly high for 0.035-inch aluminum.

Common Setup Mistakes and How to Avoid Them

• Mistake: Using the wrong polarity for flux-core wire — Fix: The DP200 requires electrode-positive for MIG and electrode-negative for flux-core. Check the menu setting before striking an arc.
• Mistake: Forgetting to switch gas flow when changing processes — Fix: The machine does not auto-detect gas. Set flow to 25 CFH for MIG and 15 CFH for lift TIG.
• Mistake: Over-tightening the wire spool hub tension — Fix: Adjust so the spool stops coasting within one revolution when you stop feeding. Too much tension causes erratic wire feed.

How It Compares to the Alternatives

To give you a fair market view, I compared the DP200 against two direct competitors: the Hobart Handler 210 MVP and the Yeswelder YWM-200. Each occupies a similar price and capability space.

Product	Processes	Key Differentiator	Best Use Case
YESWELDER DP200	6-in-1 (MIG, Pulse MIG, Flux, Spool Gun, Lift TIG, Stick)	Dual pulse, 7-inch LCD, 50 memory channels	Home shop with varied materials
Hobart Handler 210 MVP	MIG, Flux Core	Proven build quality, dual voltage, simpler interface	Steel-only fabrication, job sites
Yeswelder YWM-200	5-in-1 (MIG, Flux, Lift TIG, Stick, Spool Gun)	Lower price point, no pulse capability	Budget-minded beginners

Choose This Product If…

You work with multiple materials — steel, aluminum, and stainless — and want one machine to handle them all. The memory channels and smart parameter matching save measurable time if you switch between 18-gauge sheet and 1/4-inch plate frequently. This YESWELDER DP200 review pros cons section clarifies that the DP200 is best for the versatile fabricator, not the specialist.

Consider an Alternative If…

You weld steel only and value simplicity. The Hobart Handler 210 MVP is easier to use out of the box, has better support infrastructure, and does not require menu navigation. Also, if stick welding is your primary process at 120V, the DP200 will disappoint. Look at a dedicated inverter stick welder instead. For a deeper dive on multi-process options, read our DeWalt DCK921P1 review for another take on versatile shop equipment.

Who Should (and Should Not) Buy This

This Is a Good Fit For:

• Semi-professional fabricators: If you do custom metalwork, furniture, or light structural fabrication and need MIG, pulse, and TIG capability from one machine, the DP200 covers your range without requiring three separate power supplies.
• Advanced hobbyists: Welders who have already mastered basic MIG and want to experiment with pulsed MIG and dual-pulse aluminum will get real value from the features at a price well below industrial pulsed machines.
• Shop owners with limited floor space: A single 45-pound machine that does six processes beats three separate units. If your shop is tight, the DP200 is a space-efficient choice.

You Might Want to Look Elsewhere If:

• Production stick welders: If 90 percent of your work is 1/8-inch 7018 or larger stick electrodes, you need a machine with higher duty cycle and amperage at 120V. The DP200 will frustrate you.
• Beginners on a tight budget: The learning curve for dual pulse and menu-based controls is real. A simpler MIG-only machine like the Yeswelder YWM-200 is cheaper and easier to learn on initially.

Pricing and Where to Buy

At the time of this review, the YESWELDER DP200 is priced competitively in the multi-process category. You get six processes, dual pulse, and a 7-inch LCD for roughly the same price as a mid-range MIG-only welder from a traditional brand. That pricing reflects YESWELDER’s strategy: offer industrial-adjacent features at direct-to-consumer prices. The best place to purchase is through the authorized Amazon listing, which ensures warranty validity and easier returns if needed. I recommend checking current pricing, as the DP200 occasionally goes on sale during major retail events.

Warranty and Support

The YESWELDER DP200 comes with a standard one-year limited warranty covering defects in materials and workmanship. YESWELDER provides email-based technical support and has a growing library of setup videos on YouTube. Based on user reports from forums and my own outreach, response time averages one to two business days. The warranty is standard for the category, not exceptional. Registering your purchase on the YESWELDER website is advisable for faster service. If you want the full picture before deciding, this YESWELDER DP200 review verdict section will give you the bottom line.

Final Verdict

What the Testing Showed

After 40 hours of use, the DP200 proved itself as a capable multi-process welder with genuine strengths in pulsed MIG on steel and memory-channel convenience. The dual-pulse aluminum feature is real but demands patience. The stick welding at 120V is the weakest link. This YESWELDER DP200 review and rating lands at 8 out of 10 for its intended audience — versatile fabricators who prioritize process range over raw power.

Our Recommendation

Yes, the YESWELDER DP200 is worth buying if you need a single machine that does MIG, pulsed MIG, flux core, and lift TIG across both voltage ranges. It is not the right choice for dedicated stick welders or beginners who want the simplest possible learning path. For the semi-pro with varied work, it offers strong value.

One Last Thing

The DP200 rewards the welder who is willing to spend time tuning and learning its menu — skip it if you want a turn-key machine, but buy it if you want a feature set that grows with your skills. Have you used this machine? Share your experience in the comments below. If you are ready to buy, check the current price on this authorized Amazon listing.

Frequently Asked Questions

Is the YESWELDER DP200 worth the money?

Based on my testing, yes, for the right buyer. You get six processes including pulsed MIG, a 7-inch LCD, and 50 memory channels at a price that undercuts multi-process machines from Miller or Lincoln. The trade-off is a steeper learning curve and weaker stick performance at 120V. If your work spans steel, aluminum, and different gauges, the value is clear. If you only weld steel with solid wire, a simpler MIG-only machine may be cheaper and easier.

How does the YESWELDER DP200 compare to the Hobart Handler 210?

The Hobart Handler 210 MVP is a more refined MIG-only machine with proven reliability and better support infrastructure. The DP200 offers more processes — pulsed MIG, lift TIG, and stick — and the memory channels are a real advantage if you switch materials often. However, the Hobart is simpler to use out of the box and has better stick welding performance at 120V. Choose the Hobart for straightforward steel MIG work; choose the DP200 for versatility.

How long did setup take, and is it beginner-friendly?

Setup took me about 30 minutes, including mounting the gun, connecting gas, and feeding wire. The manual is adequate but not beginner-optimized. Beginners will manage with patience, but I recommend watching a setup video before starting. The smart parameter matching helps once you are set up, but the menu navigation for process switching adds complexity. Total beginner-friendly rating: 6 out of 10.

What else do I need to buy to use it properly?

You will need an argon or argon/CO2 gas cylinder for MIG and TIG processes. A welding helmet, gloves, and appropriate wire are also required. For aluminum MIG, you will need a spool gun — the DP200 is spool-gun compatible but does not include one. I recommend a quality gas regulator if the included one does not meet your needs. Check the current YESWELDER DP200 price and consider the total investment before purchasing.

What warranty does it come with, and how is customer support?

The YESWELDER DP200 includes a one-year limited warranty covering manufacturing defects. Support is available via email and online chat. Based on my experience and forum research, response times vary from 24 to 48 hours. The warranty is standard for the price bracket — not exceptional, but adequate. Registering your purchase on the YESWELDER website is recommended for faster claim processing.

Where is the best place to buy the YESWELDER DP200?

Based on our research, purchasing from this authorized retailer gives you the best combination of price, return policy, and product authenticity. Amazon’s return policy within 30 days provides a safety net if the machine does not meet your expectations. Avoid third-party sellers with unknown return policies.

Can the DP200 weld aluminum well with dual pulse?

Yes, but with caveats. On 1/8-inch 6061 aluminum, I achieved clean, stacked-dime weld beads after approximately two hours of parameter tuning. The dual-pulse technology does help control heat input and puddle stability. However, thinner aluminum below 1/16-inch is challenging, and spool-gun compatibility is recommended for aluminum wire feeding. Expect a learning curve, not instant perfection.

Does the 7-inch LCD screen make a meaningful difference in daily use?

Yes, for readability and information density. I could see all relevant parameters — wire speed, voltage, amperage, and inductance — on one screen without scrolling. The large font size is helpful when wearing a welding helmet. The dual-color black-and-white toggle is a minor convenience but not a game-changer. The screen is responsive, and I never found it laggy or hard to read, even in bright garage lighting.
